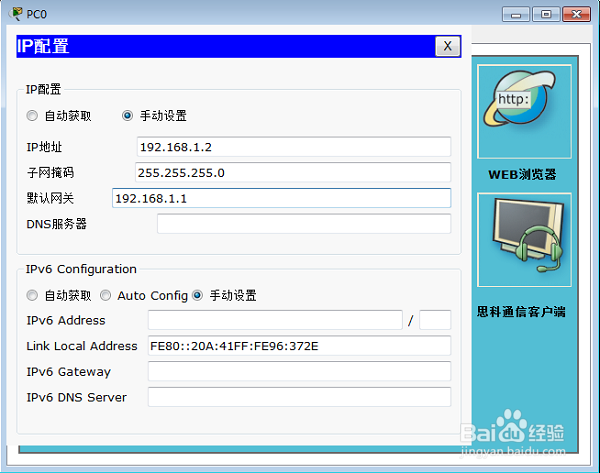

1、配置计算机PC0
IP: 192.168.1.2
Submask: 255.255.255.0
Gageway: 192.168.1.1

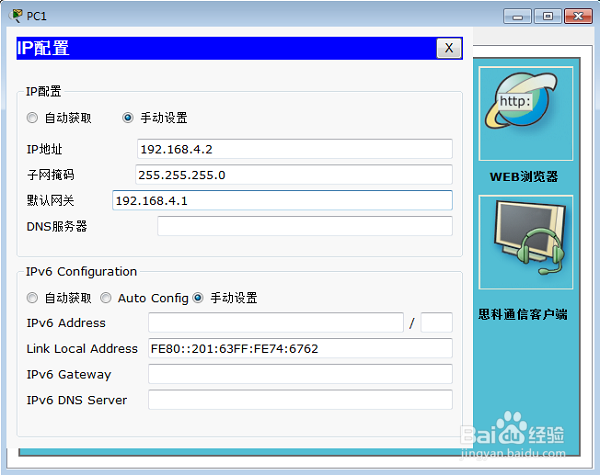

2、配置计算机PC1
IP: 192.168.4.2
Submask: 255.255.255.0
Gageway: 192.168.4.1
3、配置交换机
Switch>en
Switch#conf t
Switch(config)#vlan 2
Switch(config-vlan)#exit
Switch(config)#int fa0/10
Switch(config-if)#switchport access vlan 2
Switch(config-if)#exit
Switch(config)#int vlan 1
Switch(config-if)#ip address 192.168.1.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#int vlan 2
Switch(config-if)#ip address 192.168.2.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#int vlan 2
Switch(config-if)#ip address 192.168.2.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#end
Switch#
Switch#show int vlan 1
Switch#conf t

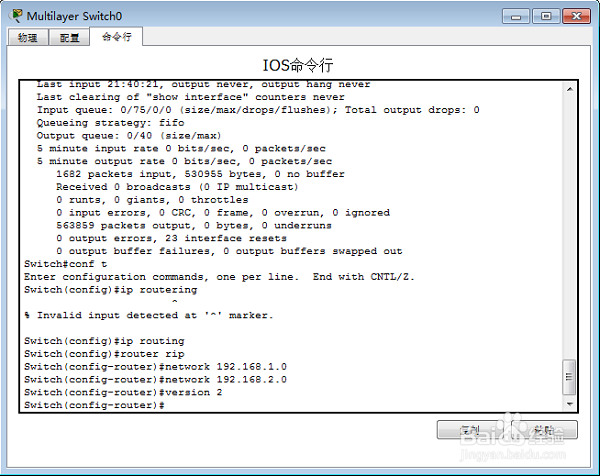

Switch(config)#ip routing
Switch(config)#router rip
Switch(config-router)#network 192.168.1.0
Switch(config-router)#network 192.168.2.0
Switch(config-router)#version 2
Switch(config-router)#

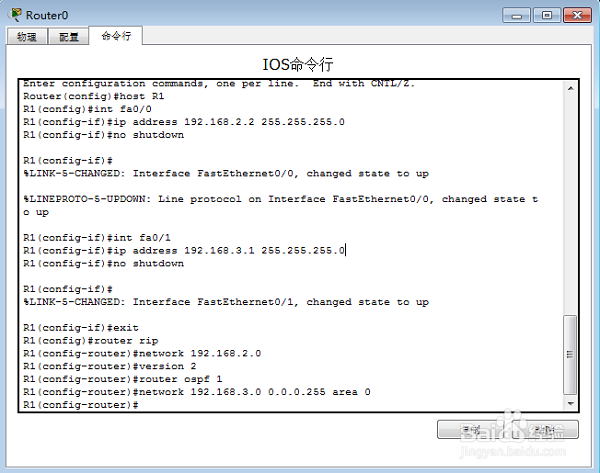

4、配置路由器R1
Router>en
Router#conf t
Router(config)#host R1
R1(config)#int fa0/0
R1(config-if)#ip address 192.168.2.2 255.255.255.0
R1(config-if)#no shutdown
R1(config-if)#
R1(config-if)#int fa0/1
R1(config-if)#ip address 192.168.3.1 255.255.255.0
R1(config-if)#no shutdown
R1(config-if)#
R1(config-if)#exit
R1(config)#router rip
R1(config-router)#network 192.168.2.0
R1(config-router)#version 2
R1(config-router)#router ospf 1
R1(config-router)#network 192.168.3.0 0.0.0.255 area 0
R1(config-router)#
5、配置路由器
Router>en
Router#conf t
Router(config)#host R2
R2(config)#int fa0/1
R2(config-if)#ip address 192.168.3.2 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#
R2(config-if)#int fa0/0
R2(config-if)#ip address 192.168.4.1 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#
R2(config-if)#exit
R2(config)#router ospf 1
R2(config-router)#network 192.168.3.0 0.0.0.255 area 0
R2(config-router)#network 192.168.4.0 0.0.0.255 area 0
R2(config-router)#end
R2#

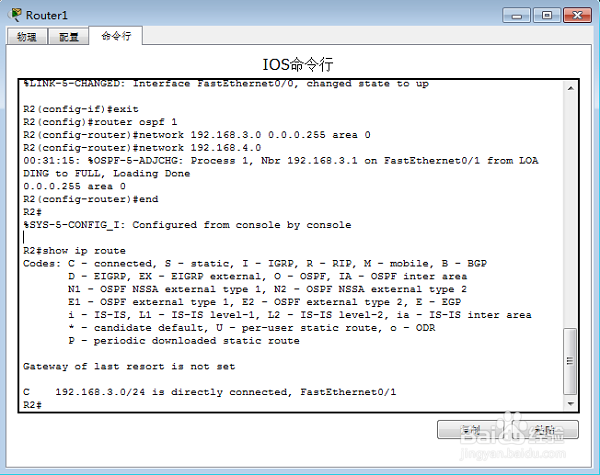

R2#show ip route
6、测试：
R1(config-router)#end
R1#

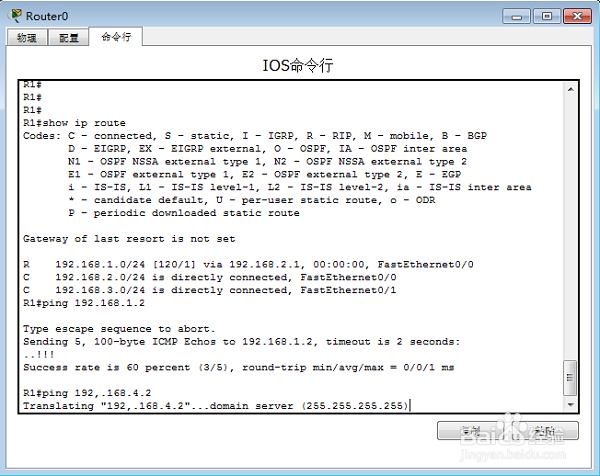

R1#show ip route
R 192.168.1.0/24 [120/1] via 192.168.2.1, 00:00:15, FastEthernet0/0
C 192.168.2.0/24 is directly connected, FastEthernet0/0
C 192.168.3.0/24 is directly connected, FastEthernet0/1
R1#show run
R1#show ip route
R1#ping 192.168.1.2
7、测试PC0

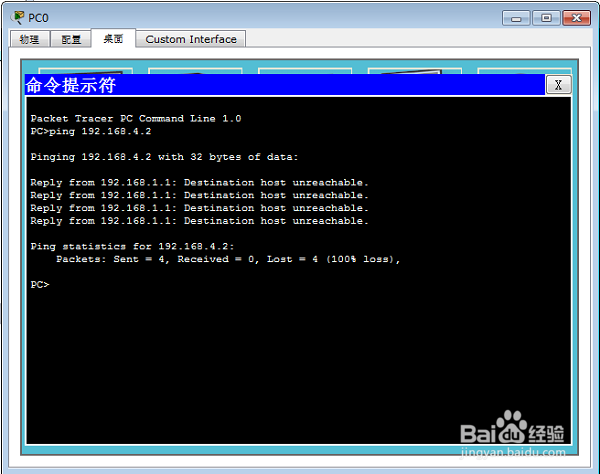

ping 192.168.4.2

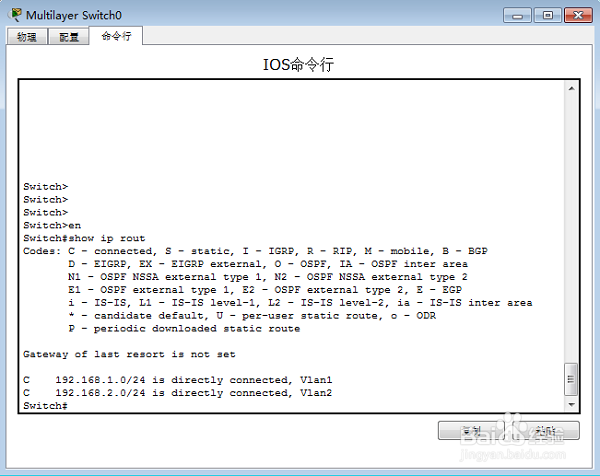

8、测试Switch_3560
show ip rout
9、R1>en
R1#conf t
Enter configuration commands, one per line. End with CNTL/Z.

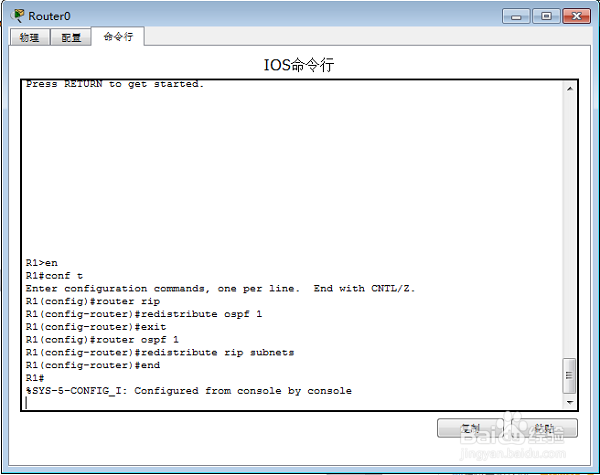

R1(config)#router rip
R1(config-router)#redistribute ospf 1
R1(config-router)#exit
R1(config)#router ospf 1
R1(config-router)#redistribute rip subnets
R1(config-router)#end
R1#
